ASHRAE Standard 100 Energy Goal Calcs

Energy Goal Calculations and Interactive Forms (A, B, and C) for compliance with ASHRAE Standard 100, "Energy Efficiency in Existing Buildings".

Contents

Foreword, including "Compliance Requirements";  interactive Form A, "Compliance with ASHRAE Standard 100", compliance verification and certification form;  interactive Form B, "Building Activity and Energy Target" calculation program (particularly useful for existing buildings with a variety of activity/tenant types and categories);  interactive Form C, "Energy Use Reporting" for input of energy survey information and energy usage history for the building;  "Building Activity and Energy Target", calculations, formulas, and tables;  Table B-1, "US and Canada Climate Zones", Map and Climate Zones Tables;  Table 7.3, "Building Operating Shifts Normalization Factors";  and an extensive "Help" file covering all of the input requirements and details.

Note: Portions of the programs, tables, and design information include excerpts from ASHRAE 100-2006R and associated Public Comments through Dec. 6, 2013.  Final Calculations and submittals should be verified to comply with the latest adopted version of the ASHRAE Standard 100 for each jurisdiction.



Calculations Input Form - Form B

The primary calculations input form, Form B, should be the first Form to be completed for every project.  Building information that is inserted into this Form is automatically transferred to other Programs for use in calculations and for documenting project data.  (Click Image to enlarge)

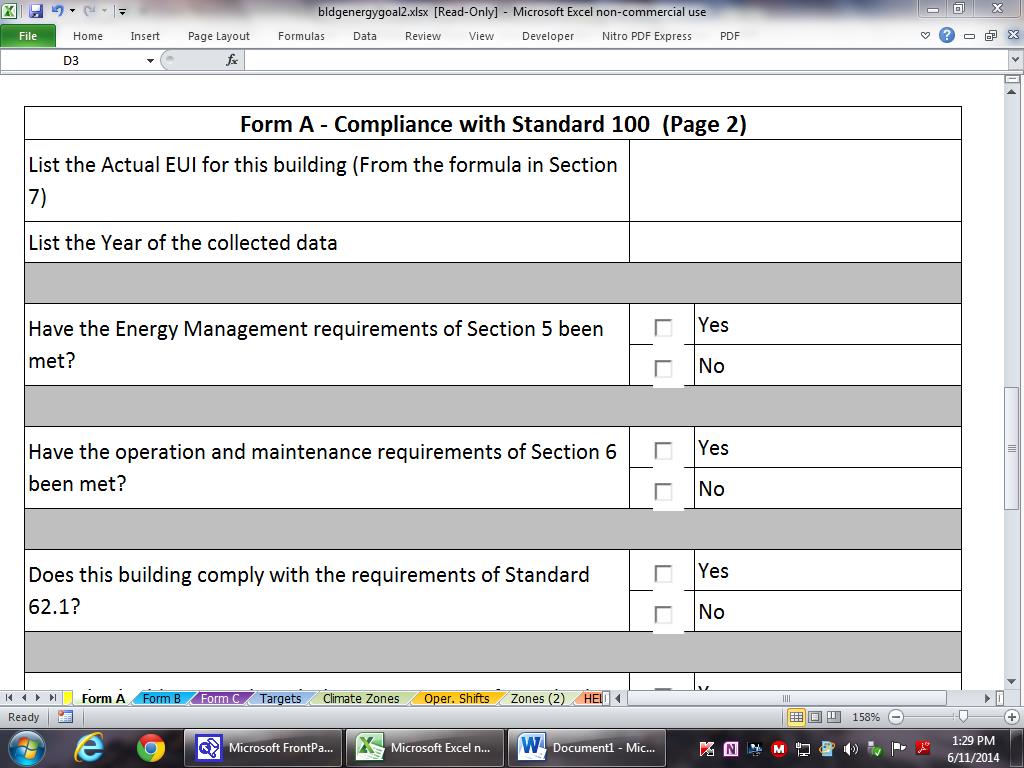

Compliance Verification and Certification Form - Form A

Interactive input and documentation form, Form A, including information input cells and checkmark boxes to document project compliance with the requirements of ASHRAE Standard 100 for Existing Building Energy goals.  Form may be printed for submission to the Authority Having Jurisdiction (AHJ) for the project. (Click Image to enlarge)forma3.jpg (113131 bytes)

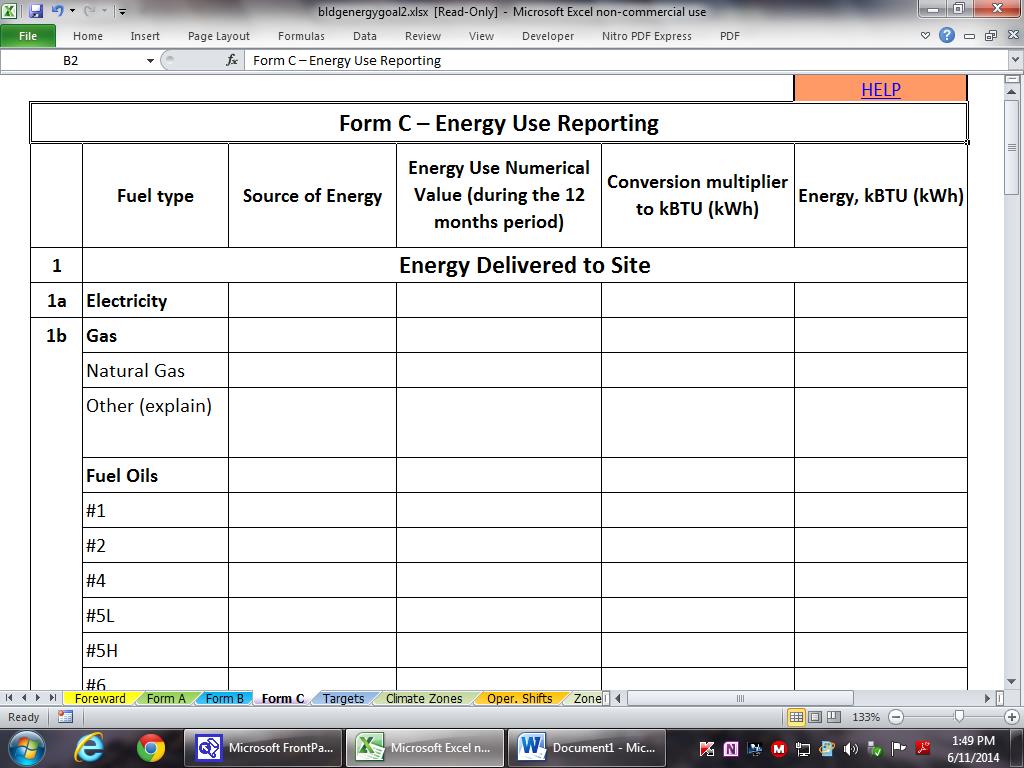

Compliance Verification and Certification Form - Form C

Interactive input and documentation form, Form C, including information input cells to document project compliance with the requirements of ASHRAE Standard 100 for Existing Building Energy goals.  Form may be printed for submission to the Authority Having Jurisdiction (AHJ) for the project. (Click Image to enlarge)

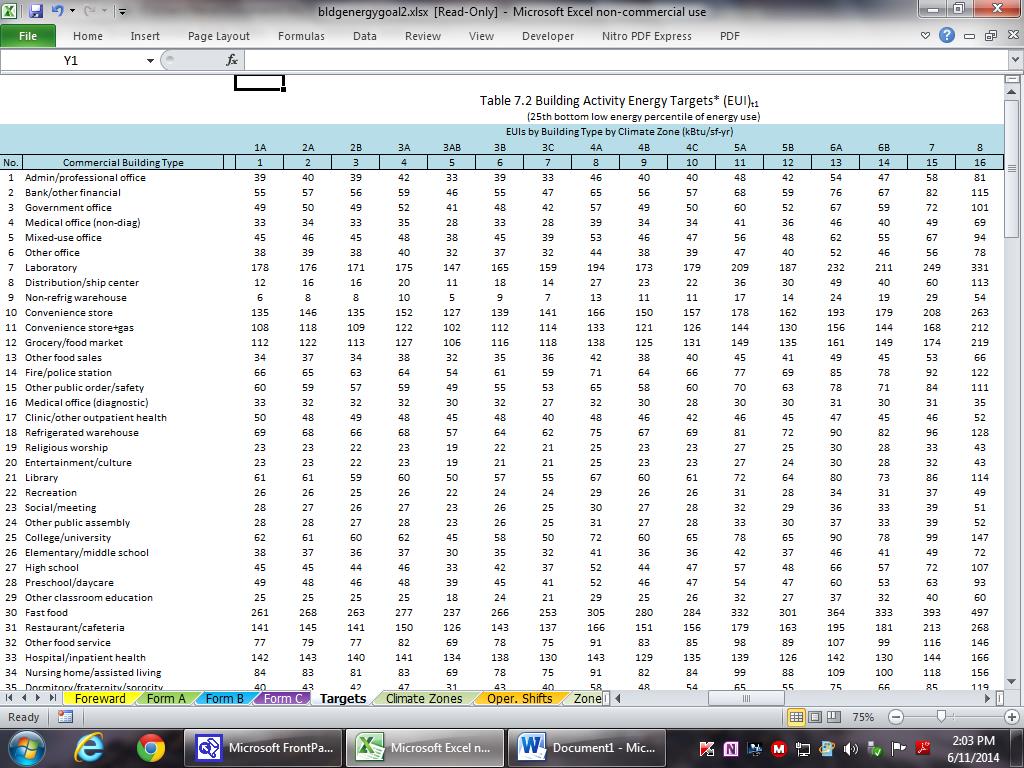

"Building Activity Energy Targets" Table

Note: Building activity energy targets (EUI)t1 listed in Table 7.3 were derived from Commercial Building Energy Consumption Survey (CBECS) 2003 and Residential Energy Consumption Survey (RECS) 2005 data by Oak Ridge National Lab (ORNL) and the U.S. Department of Energy (DOE) and represent the 25th bottom (low energy) percentile of energy use by each building category. targets1.jpg (173132 bytes)

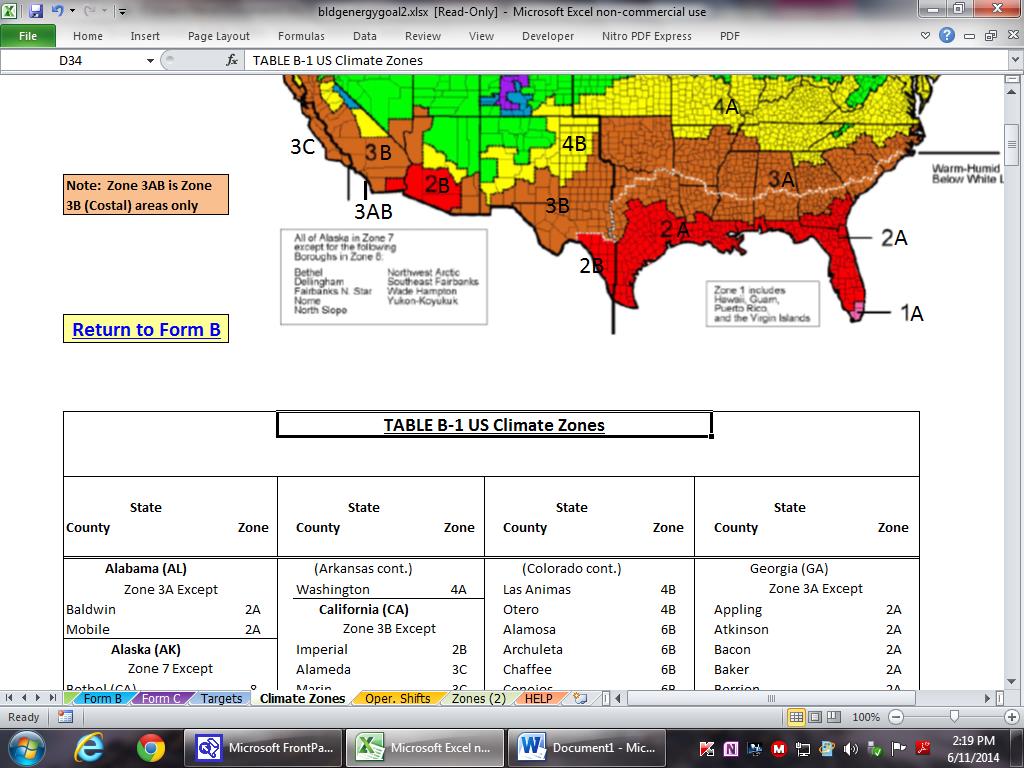

"Climate Zones Map and Table"

Climate Zones Map and Climate Zones Table are required for establishing the building Energy Target, based on the local climate factors.  Climate Zones have been established by ASHRAE to reflect temperatures and humidity conditions for locations in the US and Canada.

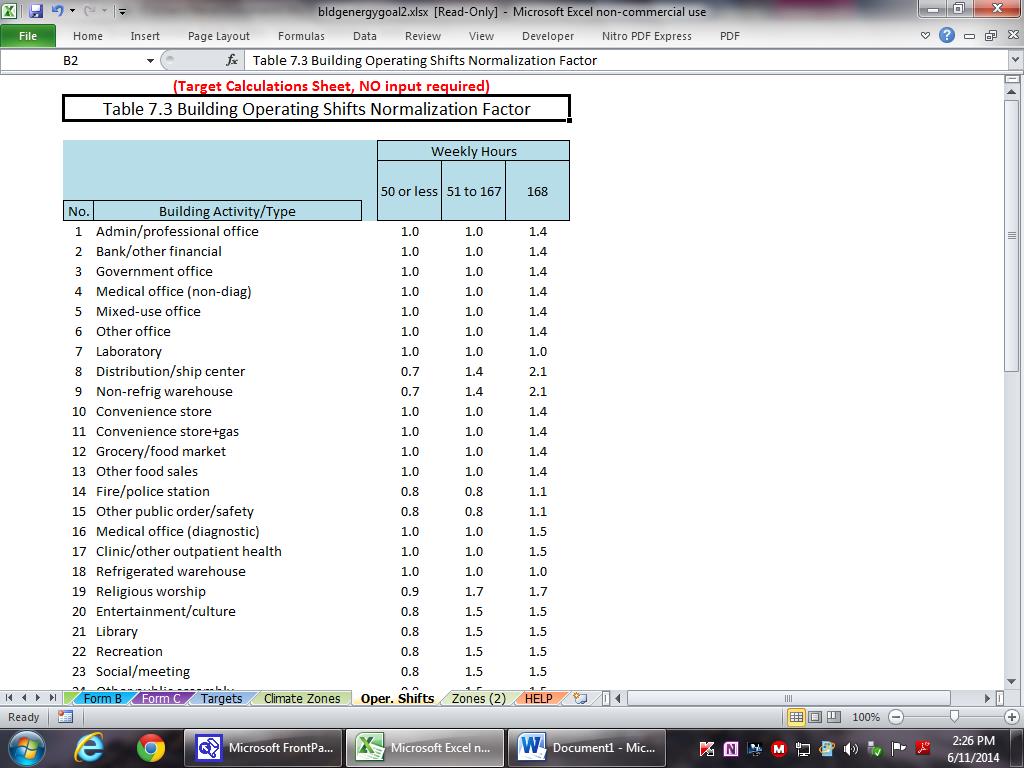

"Building Operating Shifts Normalization Factors"

Adjustments to the building Energy Targets depend on the actual or anticipated operating schedule for each Building Activity Type.  The Energy Use Targets are adjusted based on the number of hours that the building is operational. shifts1.jpg (108463 bytes)





Compliance Documentation

Compliance Documents can be printed after completing the calculations and can be submitted as a Compliance Record to the appropriate Building Department or Authority Having Jurisdiction. It is recommended that Forms A, B, and C be printed out, to assist with Building Department review.

Disclaimer of Liability for ASHRAE, Inc.

In no event will ASHRAE (or American Society of Heating, Refrigeration and Air-Conditioning Engineers, Inc.) be liable for any damages arising out of the use or inability to use the ASHRAE 100 Energy Goal Calcs programs or accompanying documentation, however caused and on any theory of liability.



Prices/Orders

All of the above Programs, Forms, and Extras are included in the ASHRAE 100 Energy Goal Calcs Package.  Order now to assure that you will receive the low "Limited Time Special Prices".   Go to the Prices/Orders page for details.
