MECHANICAL PEER REVIEW

Extensive Quality Control or "Peer Review" checklists for HVAC Design and Mechanical Construction Documents to check for: Coordination between Design Disciplines, Errors and Omissions or Inconsistencies in the HVAC Design, "Rule of Thumb" equipment capacities and system flow rates, General Constructability, and "Spot-checks" of ductwork and pipe sizes.  Also included are Basic review items for Building Department and Building Code comments and requirements.   Thorough coverage of review items for typical Projects is included to assure efficient use of your time and to increase your Value to your  Clients.

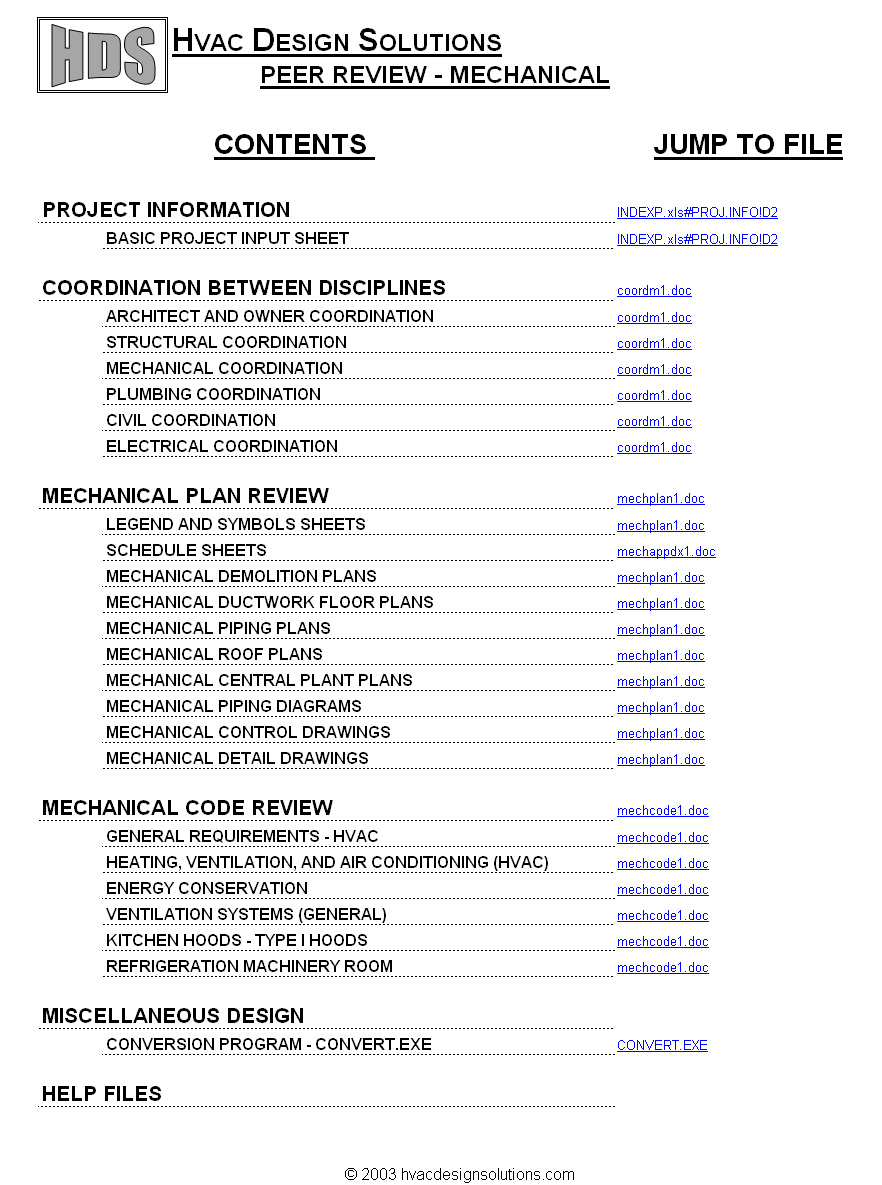

Contents PageImage45.gif (41628 bytes)

Mechanical Peer Review Package includes over (110) Pages and Spreadsheets that cover many of the Design and Engineering Requirements associated with typical Projects.  Hyperlinks are provided to help select the topics that are relevant to the project being reviewed.  Checklists can be printed to assist with the Review and for project documentation.  To view the Contents Page of the Mechanical Peer Review Package, click the adjacent image for a full size view.



Project InformationImage4.gif (36119 bytes)

The first page of the Mechanical Peer Review Package is the "Basic Project Information" form.  This should be the first Form to be completed for every project.  Project information that is inserted in this Form is automatically transferred to other Programs for use in calculations and for documenting project data.   (Click Image to enlarge)

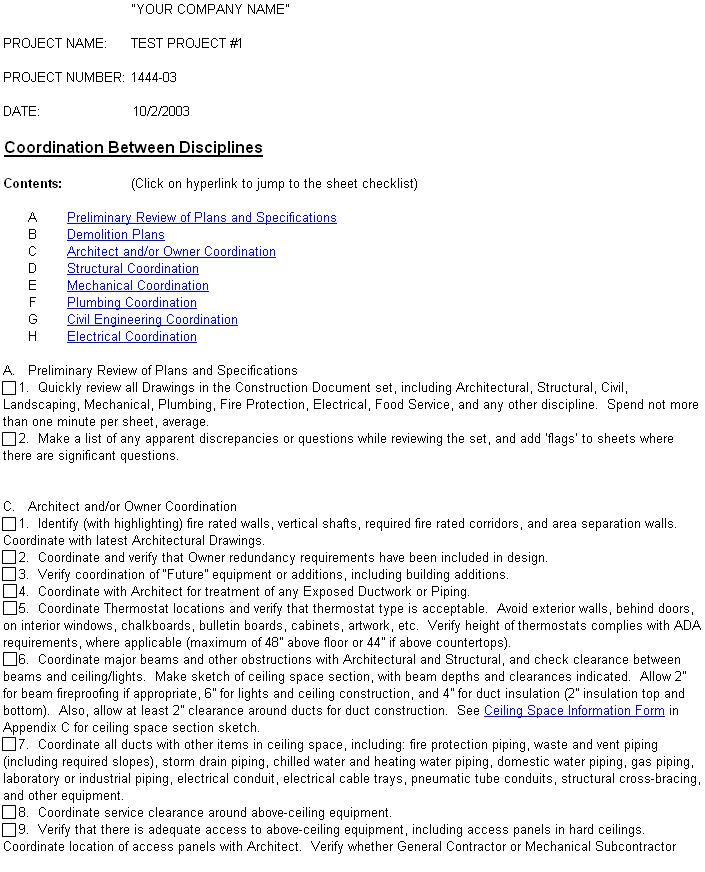

Coordination Between DisciplinesImage63.gif (24465 bytes)

Thorough list of review items is provided to help assure that all Design Elements and Tasks have been Coordinated between all members of the Project Design Team.  Included are Checklists for Coordination with the Architect and/or Owner,  Structural Engineer, Mechanical Engineer, Plumbing Engineer, Civil Engineer, and Electrical Engineer.  A partial view of the first page of the "Coordination Between Disciplines" is representative of the section. (Click to enlarge)



Mechanical Plan ReviewImage59.gif (20354 bytes)

An extensive collection of review items (over 40 pages) covers complete checking of Mechanical Construction Documents for typical Projects.   Sections are arranged by Drawing or Sheet Type, such as "Schedule Sheets" and "Mechanical Ductwork Floor Plans", and include hyperlinks for easy navigation to the specific location.  A partial view of the first page of the "Mechanical Plan Review Items" is representative of the section.  Also see the "Typical Checklist Example", below.  (Click image to enlarge)

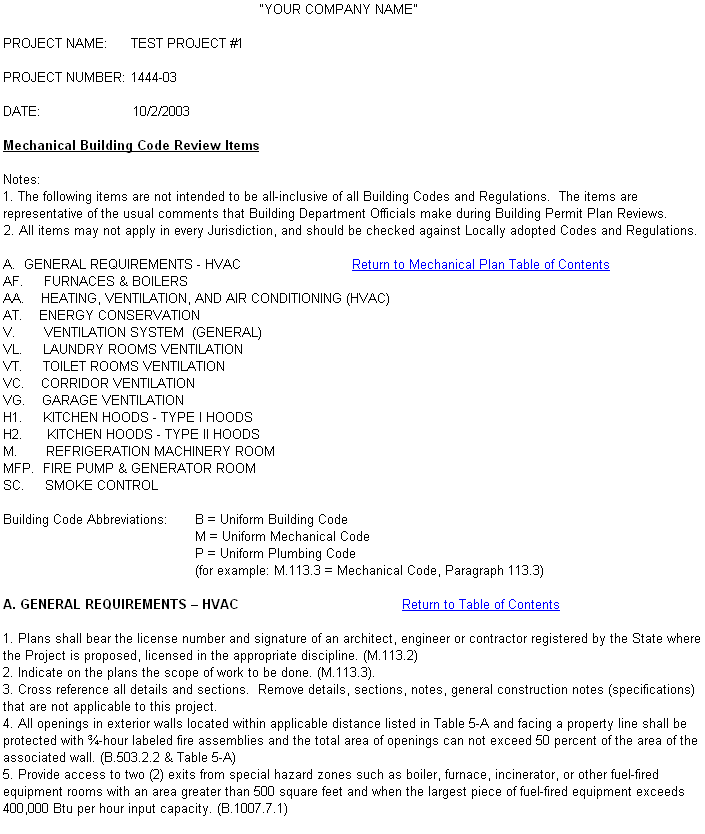

Mechanical Code ReviewImage61.gif (20852 bytes)

A checklist of representative items that are likely to be reviewed by Building Department Plan Reviewers.  These items are not intended to be all-inclusive of all Building Codes and Regulations, and may not apply in every Jurisdiction.   Included with most items is an indication of the Section and Paragraph Numbers from the Building Code, Mechanical Code, and/or Plumbing Code.  A partial view of the first page of the "Mechanical Code Review Items" is representative of the section. (Click image to enlarge)

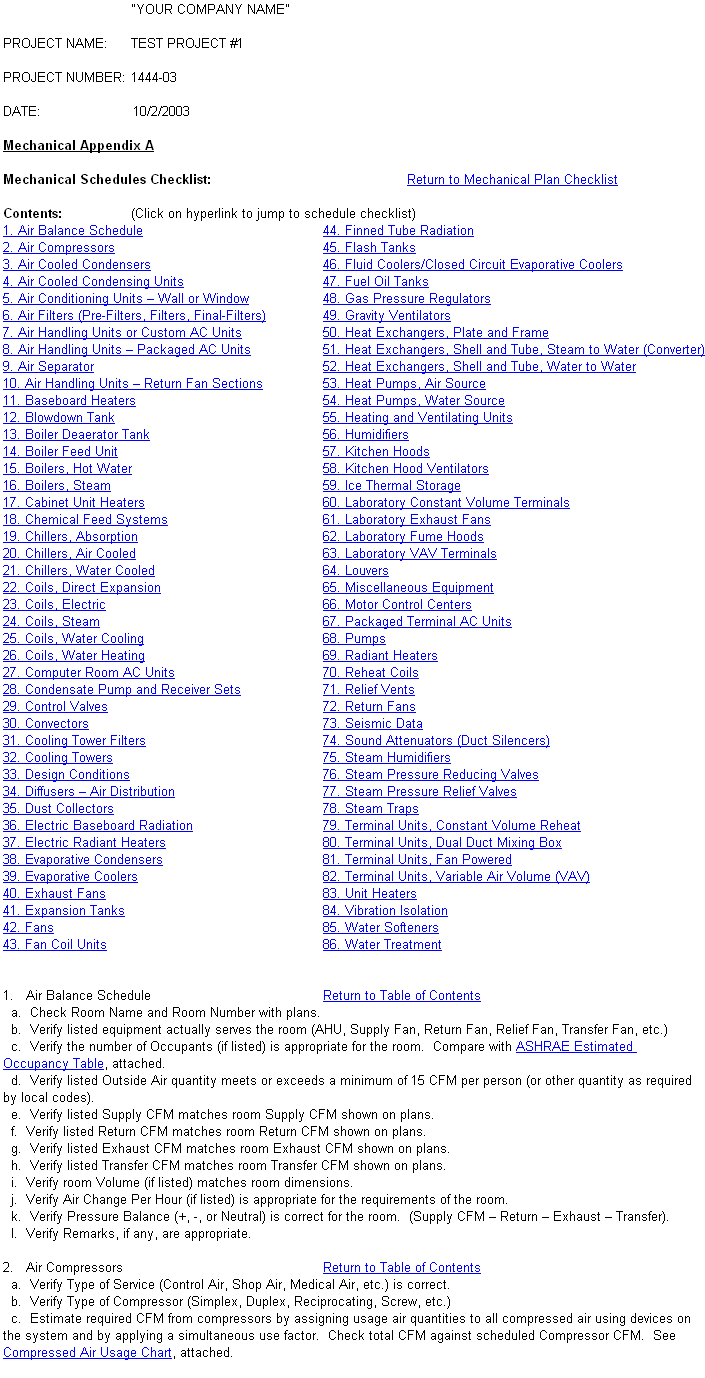

Mechanical Schedule ChecklistsImage62.gif (36874 bytes)

An extensive collection of review items (over 50 pages) covers complete checking of Mechanical Equipment Schedules for typical Projects.   Sections are arranged alphabetically by Equipment Type, such as "Air Handling Units" and "Chillers, Water Cooled", and include hyperlinks for easy navigation to the specific location.  A partial view of the first page of the "Mechanical Schedule Checklist" is representative of the section.  Also see the "Typical Checklist Example", below.  (Click image to enlarge)

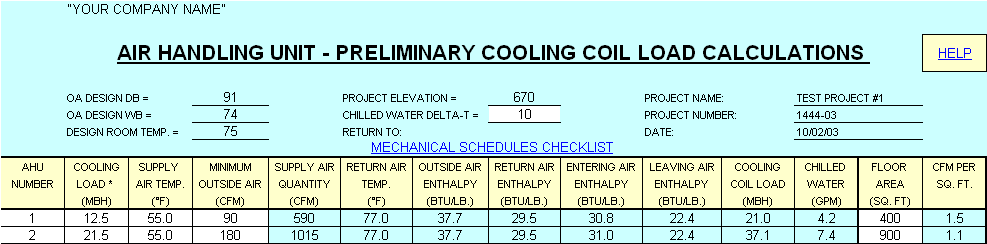

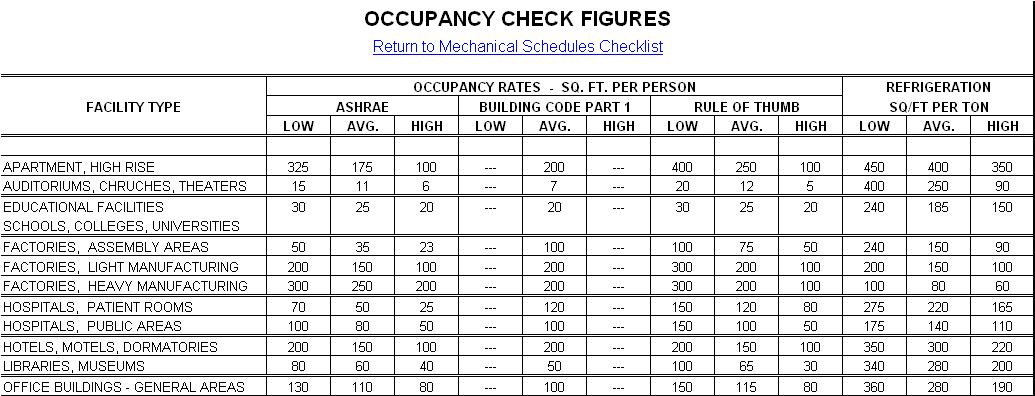

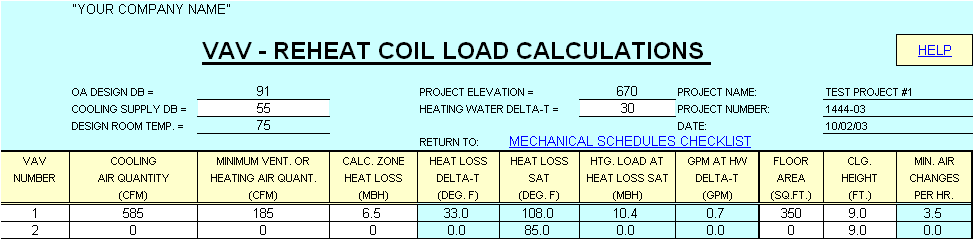

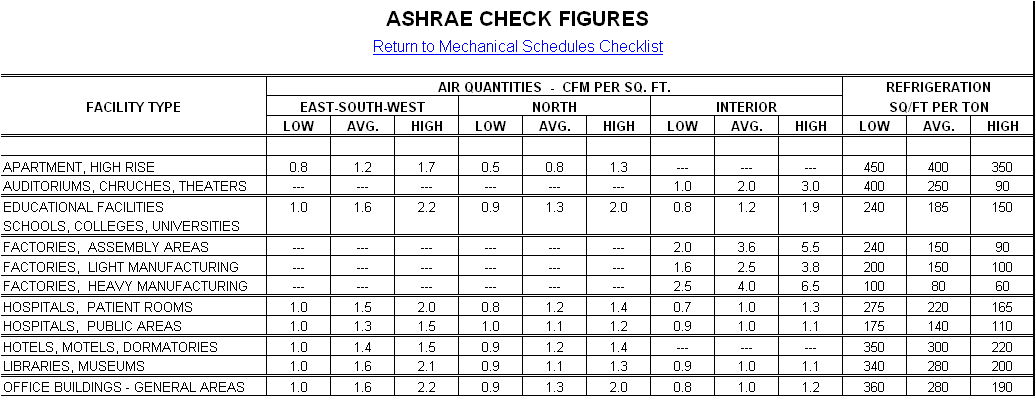

Image49.gif (20729 bytes)Image48.gif (19869 bytes)Image51.gif (12612 bytes)Typical Spreadsheets and Check FiguresImage50.gif (14365 bytes)

Included with the Mechanical  Peer Review Package are several calculation spreadsheets and Industry-standard check figures.  These programs and check figures assist in checking the Mechanical Construction Documents and Design Calculations.   (Click any image to enlarge)

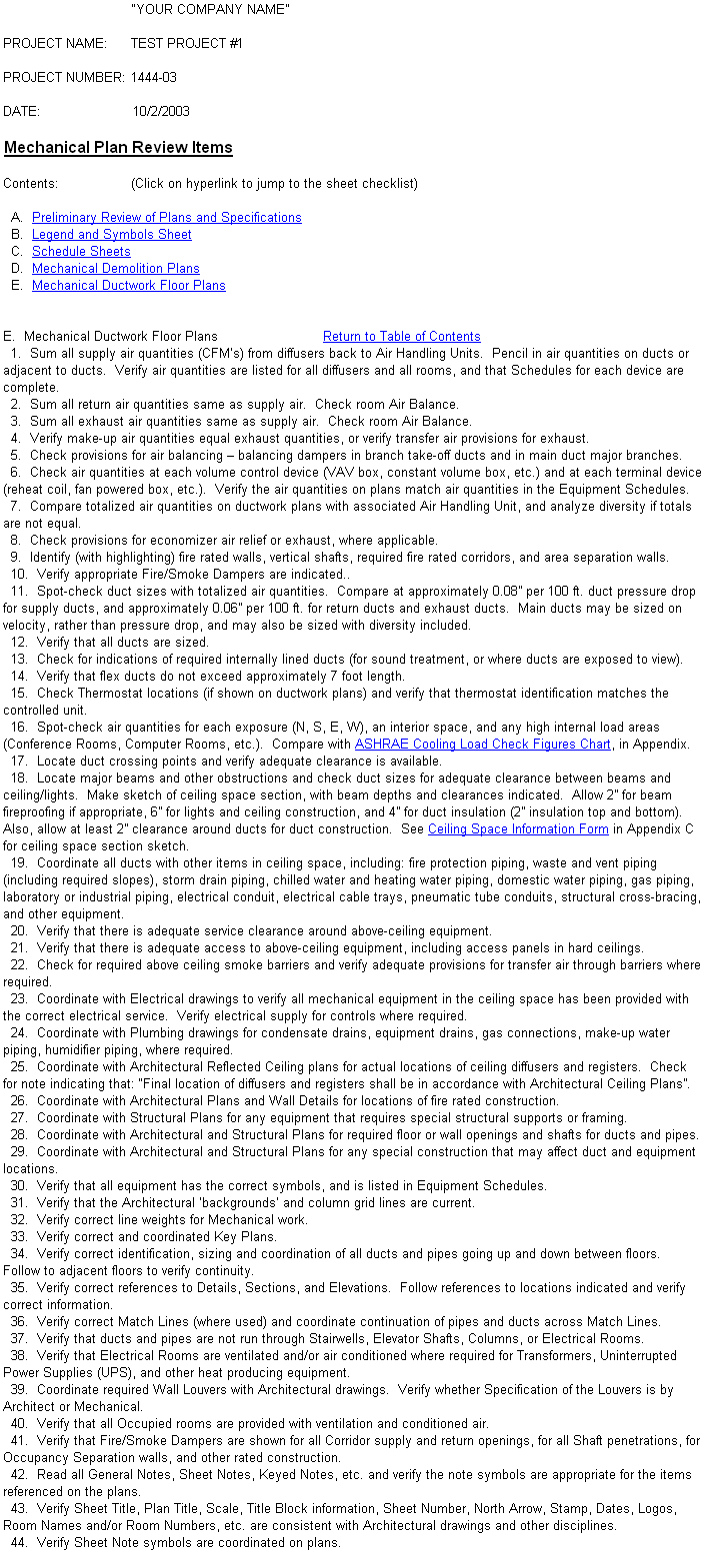

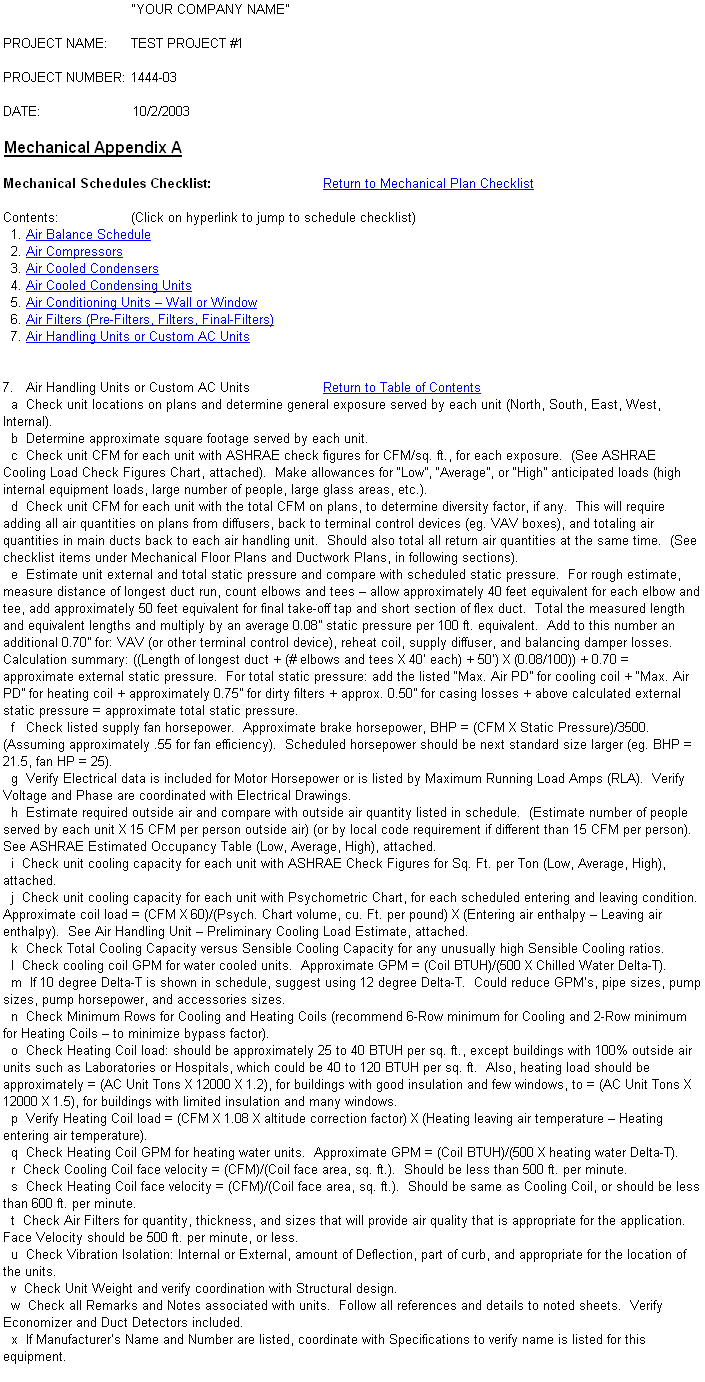

Image65.gif (44632 bytes)Typical Checklist ExamplesImage64.gif (49385 bytes)

The partial views of two pages of the "Mechanical Plan Review" and "Mechanical Schedule Checklist" are representative of the review items that are available in these sections. They indicate the extensive information and recommended calculations that are included within the Mechanical Peer Review Software Package.  Also included in the Software Package is a "Freeware" Conversion Program that can be used for many typical conversions, such as English to SI Units.  (Click any image to enlarge)



Prices/Orders

ALL of the above Checklists, Forms, and Extras are included in the Mechanical Peer Review Package.  Order now to assure that you will receive the low "Limited Time Special Prices".  Go to the Prices/Orders page for details.
